Classic Car Circuit Breakers
Mark SimpsonDescription

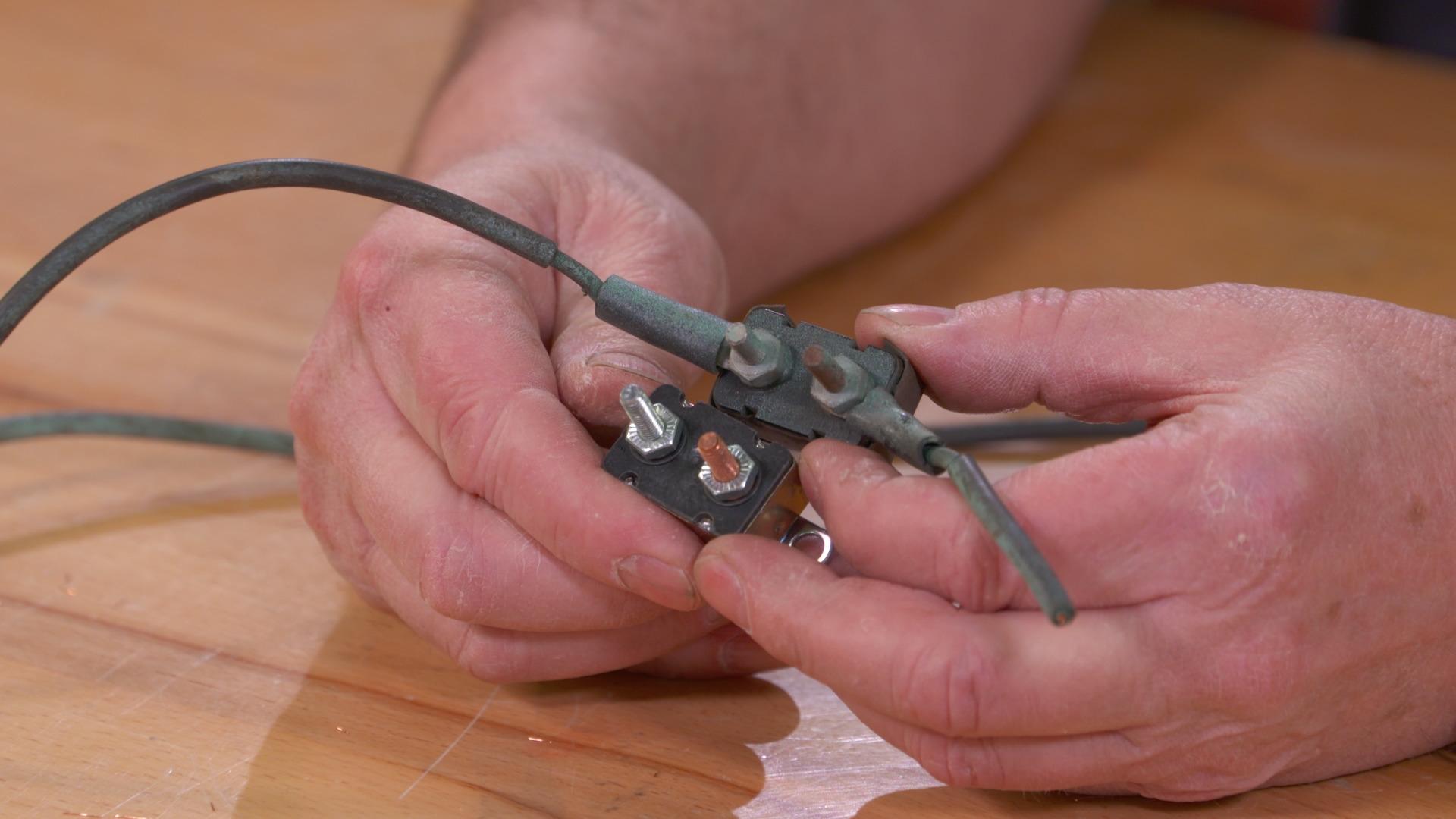

These circuit breakers protect a series of circuits and are auto-resetting, meaning that once they’re tripped they’ll reset themselves. However, some manufacturers used manually-resettable circuit breakers, usually with a button used to reset them.
This is where enthusiasts get into trouble diagnosing electrical issues as early cars did not have a uniform location for the circuit breakers, and when one trips and stays open, the car owner is left hunting for the circuit breaker location. Sometimes they’re located behind the instrument cluster, or on the firewall behind the dash.
But we’ve seen manufacturers locate them in numerous locations, including under the seat, behind the kick panels, behind the rear seat, in the engine compartment and even in the trunk. Don’t wait to have one fail before to learn the location of your circuit breakers; instead, know where they are and how many amps each is rated for, as it’s always a good idea to keep one in the glove compartment as a spare.
When hunting down the circuit breakers in your car, don’t expect them all to look the same. Commonly in 1930s cars and earlier, these were designed by the manufacturer and would vary in appearance from one make to another. By simply following the electrical circuit from the battery to ground, you’ll discover the location of the breaker.
Premium Membership
Unlock exclusive member content from our industry experts.
- 24/7 Access to Premium Videos, Tips, and Techniques
- Step-by-Step Instructional Demos, Guides, and Tutorials
- 50% Off Video Downloads Purchased in the Classic Car Restoration Shop
- Access to Ask the Expert Program
Unlock exclusive member content from our industry experts.
- 24/7 Access to Premium Videos, Tips, and Techniques
- Step-by-Step Instructional Demos, Guides, and Tutorials
- 2 Full-Length Video Downloads to Watch Offline
- 50% Off Video Downloads Purchased in the Classic Car Restoration Shop
- Access to Ask the Expert Program
Gold Membership
$304 Value
Get everything included in Premium plus exclusive Gold Membership benefits.
- 24/7 Access to Premium Videos, Tips, and Techniques
- Step-by-Step Instructional Demos, Guides, and Tutorials
- 10 Full-Length Video Downloads, added to your account, to Watch Offline
- ‘Wheel Bolt Circle’ Downloadable Guide, added to your account
- Discounts on Purchase-to-Own Content in the Classic Car Restoration Club Shop
- Access to Ask the Expert Program
Fuses and circuit breakers are 'overcurrent devices' that are designed to protect your WIRING. I your wiring size is too small or the breaker is rated too high, the wire becomes the fuse. '50's Ford headlight switches had a circuit breaker INSIDE the switch for the headlight circuit and glass fuses on the back for brake lights, etc. One of our members complained that his instrument panel was 'clicking' and his interior lights were flashing. I told him to feel the harness that feeds the trunk. One of the wires was hot. It ended at his license plate lamps. 'Makes sense because lamp sockets and plug/receptacles exposed to weather tend to corrode and rust or melt. Use all of your senses when troubleshooting.
